Salice Exedra2 enables the opening or closing of a pair of linked doors simultaneously with a single action and is able to be used as a single unit or a double unit pair.

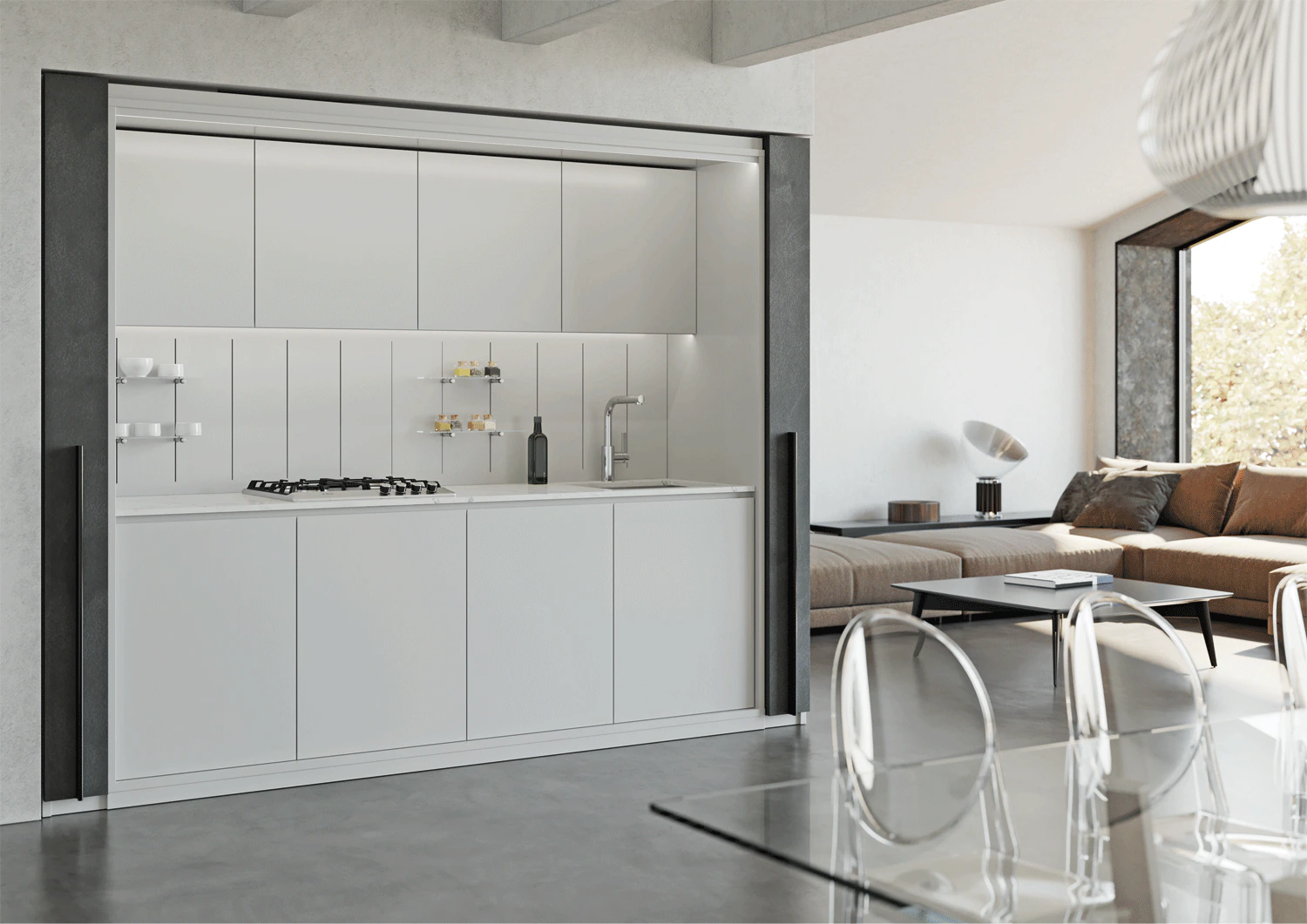

Exedra2 Star completely conceals the door panels behind the cover panel whether the doors are open or closed. With completely free unobstructed access available for widths up to 2985mm, the Exedra2 Star is the perfect choice for elegant concealment of wardrobes, kitchens, pantries, office areas, butlers’ pantries and a host of other applications.
An additional design feature of the Exedra2 Star is the ability to have the inner door panels (TL2) up to 90mm wider than the outer door panels (TL1) which allows the maximum unobstructed opening size to be extended to 3165mm.
• Required internal pocket width = 180mm
• Required door panel gaps = 3mm
• Minimum thickness of side panel (SPI) = 18mm
• Door height = 1800mm – 2600mm
• Door thickness = 18mm – 25mm
• Maximum door panel weight = 25kg
• Minimum door panel width = 450mm (TL1, TL2)
• Minimum overall opening width (including pockets) = 2217mm* (LT)
• Minimum depth of pocket required (at minimum door width) = 730mm (LPU)
• Maximum door panel width = 750mm (TL1, TL2)
• Maximum overall opening width (including pockets) = 3417mm* (LT)
• Minimum depth of pocket required (at maximum door width) = 1030mm (LPU)
*When 2 systems are used as a double pair
Exedra2 Star is custom made to order by Salice in their manufacturing facility in Italy. Please contact your Furnware Group representative with details of your available space to confirm the correct door system design, pricing and current lead times.
Exedra is a pocket door system that has assisted sliding action enhanced by linear damping to gently control the movement of the door.
Salice’s Exedra allows for soft closing movement while sliding in and out.
• Max. weight 40kg
• Thickness from 18mm to 30mm
• Width from 370mm to 900mm
• Height from 1303mm to 2800mm
Enables the opening or closing of a pair of linked doors simultaneously with a single action. Able to be used as a single unit or a double unit pair.
Exedra2 Star completely conceals the door panels behind the cover panel whether the doors are open or closed.
• Maximum weight for single door: 25kg
• Doors thickness: min 18mm – max 25mm
• Width of single door: min 450mm – max 750mm
• Doors height: min 1800mm – max 2600mm
Enables the opening or closing of a pair of linked doors simultaneously with a single action. Able to be used as a single unit or a double unit pair.
Exedra2 Smart varies from Star by allowing for shorter pocket depths.
• Maximum weight for single door: 25kg
• Doors thickness: min 18mm – max 25mm
• Width of single door: min 550mm – max 850mm
• Doors height: min 1800mm – max2600mm
